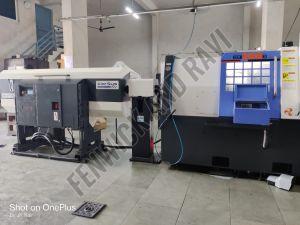

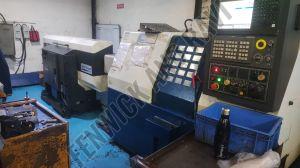

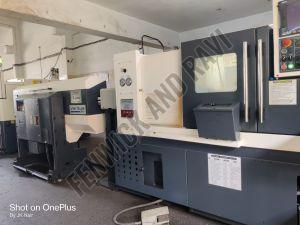

Versys Feed Bar Feeder
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Brand Name | FAR-VF-15 - Bar-Feeder |
| Automatic Grade | Fully Automatic |
| Certification | ISO 9001:2015 |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
ViewOur Versatile Bar Feeder system VF ,which completely eliminates setup change over time like pusher/push rod manual changing,Bar stock centre adjustment etc. This will tremendously save machine down time. Also bar changeover time is less than 15 seconds, thanks to the automatic bar setting mechanism.
KEY FEATURES
- Ultra fast automatic bar change over
- Double axis servo control system
- Fully automatic performance
- Highly reliable and flexible
- Great Sustainability
Ultra fast automatic change over for round and hexagonal bar stocks with in the whole diameter range.
Double axis Servo control system for two axis movement .Truly automatic diameter adjustment and pusher/push rod change over.
Fast reliable and improved position accuracy,Great sustainability,Versatile and flexible
Less power consumption and Eco-Friendly, No hydraulic oil or compressed air required
Automatic push rod changing
Push back arrangement for easy maintenance .
User friendly HMI display
Available in customized languages
Specifications
| Bar Diameter capasity | VF 12 | VF 15 |
| 5-75 mm (Option to 104 mm) | 5-75 mm (Option to 104 mm) | |
| Bar Length | Upto 1200 mm (Depends on spindle length) | Upto 1500 mm (Depends on spindle length) |
| Working axis height | 860 mm to 1200 mm | 860 mm to 1200 mm |
| Straightness of Bar | No restrictions | No restrictions |
| Capacity of material rack | Dia.10mm -50 Nos | Dia.10mm -50 Nos |
| Bar preparation | No chamfer required.A deburr is enough | No chamfer required.A deburr is enough |
| Bar positioning | By servo through program/turret stopper | By servo through program/turret stopper |
| Bar change over time | 10 seconds | 10 seconds |
| Setup change | Not required for Round and Hexagon jobs | Not required for Round and Hexagon jobs |
| Control | Programmable Logic Controller/ Servo | Programmable Logic Conroller/ Servo |
| Power supply | 415V AC ,10A | 415V AC ,10A |
| Main frequency | 50 Hz | 50 Hz |
| Control voltage | 24V DC | 24V DC |
| Installed power | 1 kW | kW |
