Turning HSR – CS
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Download |  View |
Preferred Buyer From
| Location | Worldwide |

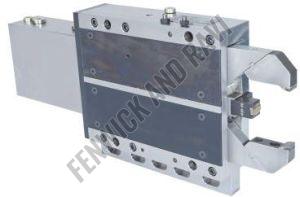

COMPACT SERIES (CS)
- CS Series steady rests are compact to fit smaller machines with bigger clamping ranges.
- CS steady rest is comes with fully sealed body Clamping range starts from 65mm and Maximum 510mm
- Rear Mounted Hydraulic actuating cylinder.
- Provision for coolant flush through arms is standard
Specifications
| Steady Model | CS3 | CS4 | CS4.1 | CS5 | CS5.1 | CS6 | CS6.1 |
| Minimum Clamping Range | 65 | 60 | 90 | 80 | 100 | 135 | 215 |
| Maximum Clamping Range | 235 | 280 | 330 | 390 | 410 | 460 | 510 |
