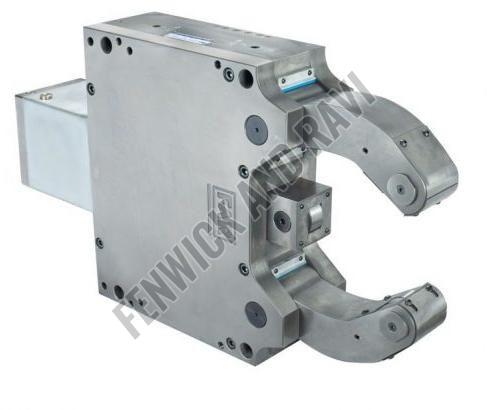

Turning HSR – FRU
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Download |  View |
Preferred Buyer From
| Location | Worldwide |
Standard Hydraulic Self steady rest with rear mounted hydraulic actuating cylinder The FRU steady rests can be mounted on flat or slant bed lathes CNC lathes, CNC milling machines etc. FRU Hydraulic Steady rests are available with different models to hold a job diameter from 6mm to 630mm.
FAR self centering steady rests standard features
- Inbuilt safety check valve
- Provision for Proximity Feed back for maximum opening
- Provision for compressed air.
- Provision for centralized lubrication suitable for oil lubrication
- Rollers
- 3 piece swarf guards for all three arms.
Specifications
| Model | FRU1 | FRU2 | FRU3 | FRU3.1 | FRU3.2 | FRU4 | FRU5 | FRU5.1 | FRU6 | FRU7 | FRU8 | |
| Clamping Range in mm | Minimum | 4 | 8 | 12 | 20 | 50 | 30 | 45 | 85 | 125 | 200 | 230 |
| Maximum | 64 | 101 | 152 | 165 | 200 | 245 | 310 | 350 | 460 | 530 | 630 | |
