17 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Material | Stainless Steel |
| Color | Silver |
| Condition | New |
| Click to view more | |
Product Details
Application
Manual
Feature
High Performance
Type
Steady Rests
Country of Origin
India
Operation Method
Manual

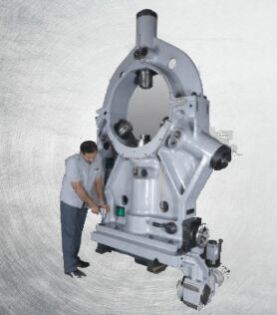

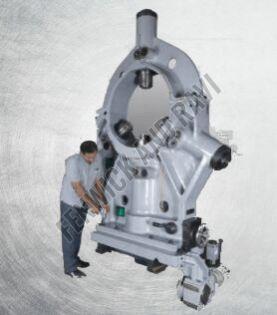

Heavy duty manual steady rests are used on very large machines to support very heavy components during turning, milling, drilling, etc.
- Diameter range-100mm to 1200mm
- Component weight-15 tonnes to 30 tonnes
- Provision for motorized axial movement along the guide way
- Contact point will be White metal or Rollers
Specifications
| Model | MS2080 | MS6012 | MS15T | MS25T | MS7100 | MS7010 | MS1040 | MS317 | MS8556 | |
| Clamping range | Min | 200 | 600 | 100 | 200 | 700 | 700 | 100 | 30 | 85 |
| Max | 800 | 1200 | 400 | 400 | 1000 | 1000 | 400 | 170 | 560 | |
| Component Weight | 20T | 20T | 15T | 25T | 3T | 10T | 2T | 750 Kg | 1.5T | |
| Actuation | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | |
| No. of Quills | 4 | 4 | 3 | 3 | 3 | 4 | 4 | 3 | 6 | |
| Contact type | Babbitt | Babbitt | Babbitt | Babbitt | Roller | Roller | Roller | Roller | Roller | |
| Lubrication | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | |
| Base clamping | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Manual | Manual | Manual | Manual | Manual | |
